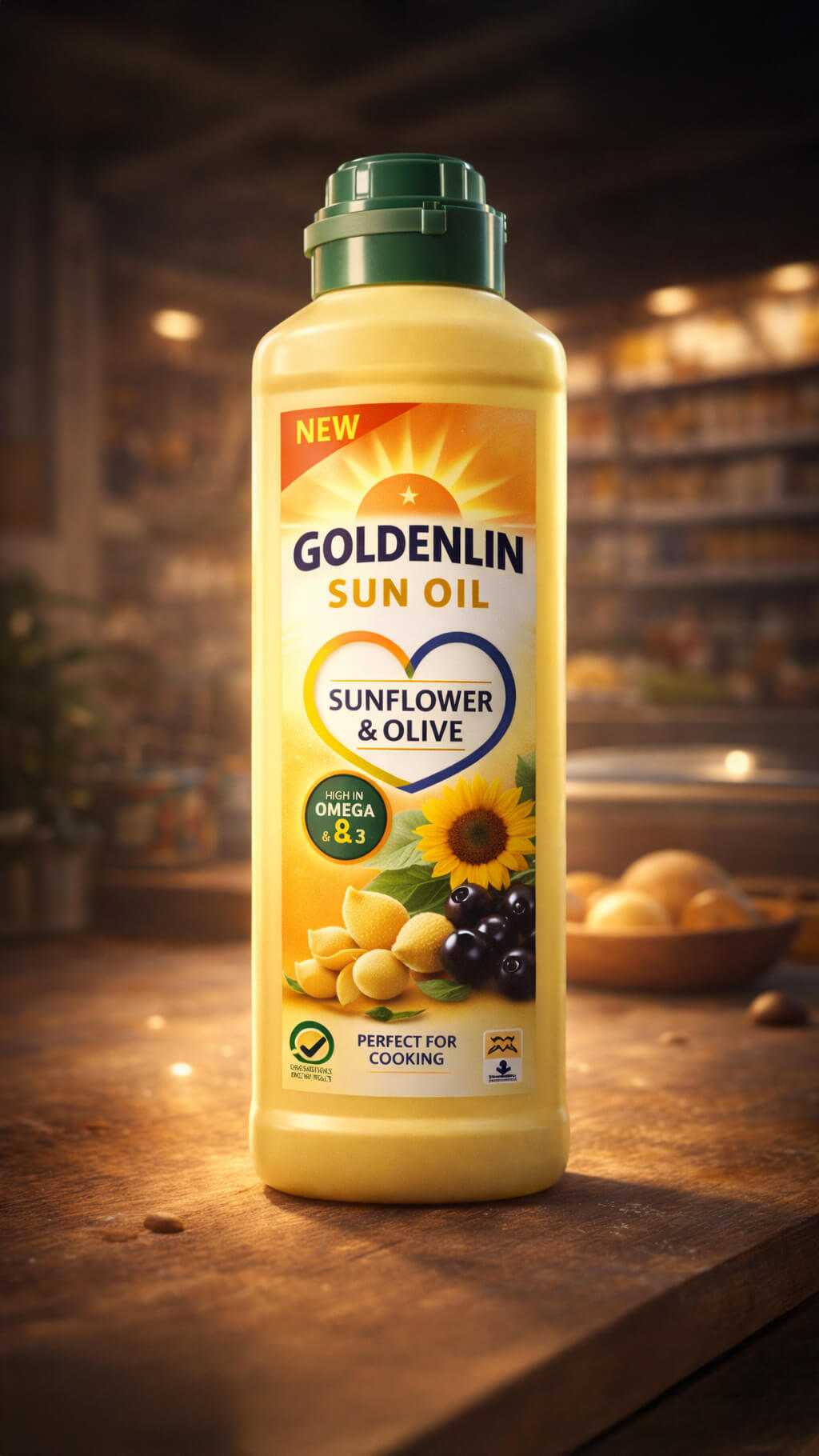

Blow Mould IML
Blow Mould IML
Blow mould in-mold labeling (IML) transforms bottle and hollow container decoration by integrating labels during the blow moulding process. Labels are inserted into the blow mould before parison inflation, creating permanent decoration as the expanding plastic bonds with the label substrate. This advanced technology produces bottles with seamless graphics, eliminating the need for pressure-sensitive labels, shrink sleeves, or post-moulding decoration.
Our blow mould IML labels accommodate the complex expansion and stretching that occurs during parison inflation, with specialized film formulations that elongate uniformly without distortion. Advanced finite element analysis predicts label behavior during inflation, ensuring graphics remain proportional and centered after moulding. The labels accommodate bottle shapes from cylindrical to complex contours with handles, grips, and embossed features.
The process enables full 360-degree decoration with continuous graphics wrapping completely around bottles. Labels contribute to bottle rigidity, enabling weight reduction while maintaining structural integrity. The decoration is immune to delamination, scratching, or peeling common with post-applied labels. Blow mould IML excels in applications requiring chemical resistance, such as agricultural chemicals, automotive fluids, and cleaning products.
Enquiry For This ProductTechnical Specifications
- Label Material: PP, HDPE film (40-100 microns)
- Print Method: Offset UV, Flexo UV, Digital
- Bottle Capacity: 100ml to 5 liters
- Wall Thickness: 0.8mm to 2.5mm
- Stretch Ratio: Up to 300% controlled elongation
- Mould Types: Extrusion blow, Injection stretch blow
- Label Placement: Robotic pick-and-place, electrostatic
- Registration Accuracy: ±1mm post-inflation
- Temperature Resistance: -30°C to 100°C
- Chemical Resistance: Excellent (solvents, oils, acids)
- UV Stability: 5+ years outdoor exposure
- Decoration Coverage: Up to 360 degrees
Bottle Applications
- Beverage bottles (juice, dairy, smoothies)
- Detergent and cleaning product bottles
- Shampoo and personal care bottles
- Motor oil and automotive fluid bottles
- Agricultural chemical containers
- Industrial chemical bottles
- Pharmaceutical liquid bottles
- Sports and nutrition drink bottles
- Cooking oil bottles
- Hand sanitizer bottles
Process Benefits
- Permanent label integration
- 360-degree decoration capability
- Enhanced bottle rigidity
- Scratch and scuff resistance
- No label inventories needed
- Reduced production steps
- Tamper-evident construction
- Premium no-label appearance
- Recycling friendly (mono-material)
- Cost effective at volume
Design Considerations
- Artwork compensation for stretch
- Strategic placement for inflation
- Handle and grip area decoration
- Registration mark integration
- Color consistency across batches
- Transparent window options
- Textured surface effects
- Metallic finish integration
- Multi-layer capabilities
- Variable data compatibility
